Java Jpeg画像ファイル一括サイズ変換 GUI版

Java Imageクラス使い方でコマンドライン版でのサイズ変換プログラムを 掲載しました。これをGUI化したものを掲載します。例によってNetBeansで作成したものです。
ソースは、メインプログラムのSizeConv.javaと、イメージ処理を担当するImgPrc.javaから成っています。 動作時の画面構成は次のようになります。

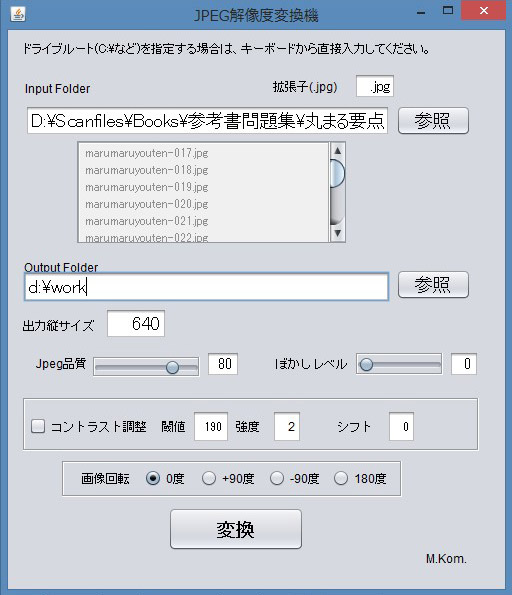

fig

SizeConv.java実行時

InputFolderに指定されたフォルダ内の拡張子jpgのファイルはすべてOutput Folderに指定された フォルダ内にサイズ変換されて格納されます。
出力縦サイズのみを指定するようになっており、横サイズは元ファイルの縦横比を維持するように決定されます。 ぼかしをかけられるようになっており、そのレベルを0から5までで設定できます。
コントラスト調整は3乗根関数を使用しています。中心の値(閾値)を指定できます。閾値より明るいピクセルはより明るく、閾値より 暗いピクセルはより暗くなります。傾きの強度を指定できます。全体の明度調整をシフトの値として設定できます。
生成画像の回転をすることができます。90度刻みです。
こうした画像処理関連の多くは、ImgPrcクラスで行う形をとっています。

実行用Jarファイルはこちら。JpgConverter.jar
ソースコードはいつものように自動生成された部分は基本的に省略し、人力で作成した部分を示します。
まずはメインプログラムのSizeConv.javaですが、その前に、GUIの部品の使用状況は次のようになっています。
    private javax.swing.JTextField ContrastShiftPlus;
    private javax.swing.JTextField ContrastThresh;
    private javax.swing.JButton ConvBtn;
    private javax.swing.JTextField InputFolderName;
    private javax.swing.JTextField OutputFolderName;
    private javax.swing.JRadioButton Rotate0;
    private javax.swing.JRadioButton Rotate180;
    private javax.swing.JRadioButton Rotate270;
    private javax.swing.JRadioButton Rotate90;
    private javax.swing.ButtonGroup buttonGroup1;
    private javax.swing.JList fileList;
    private javax.swing.JButton jButton2;
    private javax.swing.JButton jButton3;
    private javax.swing.JCheckBox jCheckContrast;
    private javax.swing.JLabel jLabel1;
    private javax.swing.JLabel jLabel10;
    private javax.swing.JLabel jLabel11;
    private javax.swing.JLabel jLabel12;
    private javax.swing.JLabel jLabel2;
    private javax.swing.JLabel jLabel3;
    private javax.swing.JLabel jLabel4;
    private javax.swing.JLabel jLabel5;
    private javax.swing.JLabel jLabel6;
    private javax.swing.JLabel jLabel7;
    private javax.swing.JLabel jLabel8;
    private javax.swing.JLabel jLabel9;
    private javax.swing.JPanel jPanel1;
    private javax.swing.JPanel jPanel2;
    private javax.swing.JPanel jPanel3;
    private javax.swing.JScrollPane jScrollPane1;
    private javax.swing.JSlider jSlider1;
    private javax.swing.JSlider jSliderBokashi;
    private javax.swing.JTextField jTextBokashi;
    private javax.swing.JTextField jTextContrastLevel;
    private javax.swing.JTextField jTextField2;
    private javax.swing.JTextField jTextField3;
    private javax.swing.JTextField jTextWidth;

メインのソースコードです。


/**
 *
 * @author Kom.
 */

import java.io.*;
import java.awt.Image;
import java.awt.image.BufferedImage;
import java.util.Iterator;
import javax.imageio.*;
import javax.imageio.stream.ImageOutputStream;
import javax.swing.*;
import java.awt.*;
import java.awt.geom.AffineTransform;
import java.awt.image.*;
import java.util.*;
import javax.imageio.plugins.jpeg.JPEGImageWriteParam;

public class SizeConv extends javax.swing.JFrame {
  int targetWidth; //画像横幅がこのサイズになるよう拡縮
  int imageWidth; //現在の画像幅
  int imageHeight;
    DefaultListModel model;

    ImgPrc imgprc;
    /**
     * Creates new form SizeConv
     */

 @SuppressWarnings("unchecked")
    public SizeConv() {
        initComponents();
        model = new DefaultListModel();

    fileList.setModel(model);
    }

// initComponents()は省略 .......................

   private void ConvBtnActionPerformed(java.awt.event.ActionEvent evt) {
    //3種類の方法を記述しています。どれでも出来上がりに大差はありません。
    //convert1();
    //convert2();
    convert3();
    }

  public void convert1(){
    searchFile(InputFolderName.getText());
        String delim="\\";
        String delimOut="\\";
        String swk=InputFolderName.getText();
        int slen=swk.length();
        if(swk.charAt(slen-1) == '\\'){
                delim="";
        }

        swk=OutputFolderName.getText();
        slen=swk.length();
        if(swk.charAt(slen-1) == '\\'){
            delimOut="";
        }
        this.setCursor(Cursor.getPredefinedCursor(Cursor.WAIT_CURSOR));
        for (int i = 0; i < model.getSize(); i++) {
            try{
                BufferedImage image = ImageIO.read(
            new File(InputFolderName.getText()+delim+model.getElementAt(i))
          );
        imgprc= new ImgPrc(image);
        //Rotate
        if(Rotate90.isSelected()){
          imgprc.turnImage(1);
        }else if(Rotate270.isSelected()){
          imgprc.turnImage(2);
        }else if(Rotate180.isSelected()){
          imgprc.turnImage(1);
          imgprc.turnImage(1);
        }

        //Soften
        int bokashival=Integer.parseInt(jTextBokashi.getText());
        if(bokashival!=0){
          for(int bi=0; bi < bokashival; bi++){
            soft(1);
          }
        }

        //Contrast
        if(jCheckContrast.isSelected()){
          imgprc.contrastChange(
            Integer.parseInt(ContrastThresh.getText()),
            Double.parseDouble(jTextContrastLevel.getText()),
            Integer.parseInt(ContrastShiftPlus.getText())
          );
        }
        //ImageをBufferedImageクラスに変換
        //Imageオブジェクトからピクセルを抽出できるようにする
                PixelGrabber pixelGrabber = new PixelGrabber(
        imgprc.getCurrentImage(),
          0,
          0,
          -1,
          -1,
          false
        );
        pixelGrabber.grabPixels();
        ColorModel cm = pixelGrabber.getColorModel();
        final int w = pixelGrabber.getWidth();
        final int h = pixelGrabber.getHeight();
        WritableRaster raster = cm.createCompatibleWritableRaster(w, h);
        BufferedImage renderedImage = new BufferedImage(
          cm,
          raster,
          cm.isAlphaPremultiplied(),
          new Hashtable()
        );
        renderedImage.getRaster().setDataElements(
          0,
          0,
          w,
          h,
          pixelGrabber.getPixels()
        );
        image = convertToINTRGB(resizeImage(renderedImage));
        float qt=Float.valueOf(jSlider1.getValue())/100f;
        writeImage(
          image,
          OutputFolderName.getText()+delimOut+model.getElementAt(i),
          qt
        );
      }catch(Exception e){
        this.setCursor(Cursor.getPredefinedCursor(Cursor.DEFAULT_CURSOR ));
        System.out.println(e);
      }
    }
    this.setCursor(Cursor.getPredefinedCursor(Cursor.DEFAULT_CURSOR ));
  }

  public void convert2(){
    searchFile(InputFolderName.getText());
    String delim="\\";
    String delimOut="\\";
    ImageWriter writer = null;
    ImageOutputStream imageStream;
    String swk=InputFolderName.getText();
    int slen=swk.length();
    if(swk.charAt(slen-1) == '\\'){
        delim="";
    }

    swk=OutputFolderName.getText();
    slen=swk.length();
    if(swk.charAt(slen-1) == '\\'){
        delimOut="";
    }
    int targetWidth=Integer.parseInt(jTextWidth.getText());
    this.setCursor(Cursor.getPredefinedCursor(Cursor.WAIT_CURSOR));
    for (int i = 0; i < model.getSize(); i++) {
      try {
        BufferedImage orgImage = null;
        orgImage = ImageIO.read(new File(
            InputFolderName.getText()+delim+model.getElementAt(i))
          );

        int width = orgImage.getWidth();
        int height = orgImage.getHeight();
        int targetHeight;

        targetHeight = (int)(((double)targetWidth / width) * (double)height);
        BufferedImage resizeImage=
          new BufferedImage(
            targetWidth,
            targetHeight,
            BufferedImage.TYPE_3BYTE_BGR
          );
        AffineTransformOp ato = null;
        ato = new AffineTransformOp(
          AffineTransform.getScaleInstance((double)(targetWidth) / orgImage.getWidth(),
          (double)targetHeight / orgImage.getHeight()), null);
        ato.filter(orgImage, resizeImage);
        resizeImage.getGraphics().drawImage(
          orgImage.getScaledInstance(
            targetWidth,
            targetHeight,
            Image.SCALE_AREA_AVERAGING
          ),
          0,
          0,
          targetWidth,
          targetHeight,
          null
        );

        imageStream =
          ImageIO.createImageOutputStream(
            new File(OutputFolderName.getText()+delimOut+model.getElementAt(i))
          );
        writer = null;
        Iterator it = (Iterator) ImageIO.getImageWritersByFormatName("jpg");
        writer = (ImageWriter) it.next();
        writer.setOutput(imageStream);
        JPEGImageWriteParam jpgWriter = new JPEGImageWriteParam(Locale.getDefault());
        jpgWriter.setCompressionMode(ImageWriteParam.MODE_EXPLICIT);
        float qt=Float.valueOf(jSlider1.getValue())/100f;
        jpgWriter.setCompressionQuality(qt);
        writer.write(null, new IIOImage(resizeImage, null, null), jpgWriter);
        imageStream.flush();
        writer.dispose();
        imageStream.close();
      }catch (Exception e) {
        this.setCursor(Cursor.getPredefinedCursor(Cursor.DEFAULT_CURSOR ));
        System.out.println(e);
      }
    }
    this.setCursor(Cursor.getPredefinedCursor(Cursor.DEFAULT_CURSOR ));
  }

  public void convert3(){
    int targetWidth=Integer.parseInt(jTextWidth.getText());
    searchFile(InputFolderName.getText());
        String delim="\\";
        String delimOut="\\";
        String swk=InputFolderName.getText();
    int targetHeight;
        int slen=swk.length();
    double mag;
        if(swk.charAt(slen-1) == '\\'){
                delim="";
        }

        swk=OutputFolderName.getText();
        slen=swk.length();
        if(swk.charAt(slen-1) == '\\'){
            delimOut="";
        }
        this.setCursor(Cursor.getPredefinedCursor(Cursor.WAIT_CURSOR));
        for (int i = 0; i < model.getSize(); i++) {
          try{
            BufferedImage wkimage = ImageIO.read(
              new File(InputFolderName.getText()+delim+model.getElementAt(i))
            );
            imgprc= new ImgPrc(wkimage);
            targetHeight=imgprc.getImageHeight();
            //Rotate
            if(Rotate90.isSelected()){
              imgprc.turnImage(1);
            }else if(Rotate270.isSelected()){
              imgprc.turnImage(2);
            }else if(Rotate180.isSelected()){
              imgprc.turnImage(1);
              imgprc.turnImage(1);
            }

            //Soften
            int bokashival=Integer.parseInt(jTextBokashi.getText());
            if(bokashival!=0){
              for(int bi=0; bokashival>bi; bi++){
                soft(1);
              }
            }

        //Contrast
            if(jCheckContrast.isSelected()){
              imgprc.contrastChange(
                Integer.parseInt(ContrastThresh.getText()),
                Double.parseDouble(jTextContrastLevel.getText()),
                Integer.parseInt(ContrastShiftPlus.getText())
              );
            }
            BufferedImage resizedImage = null;
            targetWidth=Integer.parseInt(jTextWidth.getText());
            mag = ((double)targetWidth / imgprc.imageWidth);
            targetHeight = (int)(imgprc.getImageHeight() * mag);

            imgprc.scaleImage(targetWidth, targetHeight);
            resizedImage = imgprc.getBufferedImage();

            ImageOutputStream imageStream =
              ImageIO.createImageOutputStream(
                new File(OutputFolderName.getText()+delimOut+model.getElementAt(i))
              );
            JPEGImageWriteParam param = new JPEGImageWriteParam(Locale.getDefault());
            param.setCompressionMode(ImageWriteParam.MODE_EXPLICIT);
            float qt=Float.valueOf(jSlider1.getValue())/100f;
            param.setCompressionQuality(qt);
            ImageWriter writer = ImageIO.getImageWritersByFormatName("jpg").next();
            writer.setOutput(imageStream);
            writer.write(null, new IIOImage(resizedImage, null, null), param);
            imageStream.flush();
            writer.dispose();
            imageStream.close();
          }catch(Exception e){
            this.setCursor(Cursor.getPredefinedCursor(Cursor.DEFAULT_CURSOR ));
            System.out.println(e);
          }
        }
        this.setCursor(Cursor.getPredefinedCursor(Cursor.DEFAULT_CURSOR ));
  }

  private void jButton2ActionPerformed(java.awt.event.ActionEvent evt) {
    readSansho ();
  }

  private void jButton3ActionPerformed(java.awt.event.ActionEvent evt) {
    writeSansho();
  }

  private void jSlider1MouseDragged(java.awt.event.MouseEvent evt) {
    jTextField3.setText(Integer.toString(jSlider1.getValue()));
  }

  private void jSliderBokashiMouseDragged(java.awt.event.MouseEvent evt) {
    // ぼかしスライダーイベント
    jTextBokashi.setText(Integer.toString(jSliderBokashi.getValue()));
  }

  @SuppressWarnings("unchecked")
    public void searchFile(String dirname){
        try{
      String ext=jTextField2.getText();
            File file = new File(dirname);
            File[] files = file.listFiles();
      //System.out.println(ext.toLowerCase());
            model.clear();
      for (int i = 0; i < files.length; i++) {
                File wkfile = files[i];
      // ファイル名(全て小文字に変換)
        String lowname = wkfile.getName().toLowerCase();
        // 拡張子「.jpg」のファイルなら表示
        if(lowname.endsWith(ext.toLowerCase()) &&
          wkfile.isFile() && wkfile.canRead() ){
            //System.out.println(wkfile.getName());
            model.addElement(wkfile.getName());
          }
        }
        } catch (Exception ex) {
      System.out.println(ex);
    }
    }

  public static void outputImage(String filename, BufferedImage image) throws IOException {
    JPEGImageWriteParam param = new JPEGImageWriteParam(Locale.getDefault());
    param.setCompressionMode(ImageWriteParam.MODE_EXPLICIT);
    param.setCompressionQuality(0.95f);

    ImageWriter writer = ImageIO.getImageWritersByFormatName("jpg").next();
    writer.setOutput(ImageIO.createImageOutputStream(new File(filename)));
    writer.write(null, new IIOImage(image, null, null), param);
    writer.dispose();
  }

  public void writeSansho() {
    String delim="\\";
    //JFileChooser fc=new JFileChooser(System.getProperty("user.dir"));
    JFileChooser fc=new JFileChooser(OutputFolderName.getText());
    fc.setFileSelectionMode(JFileChooser.DIRECTORIES_ONLY);
    //ファイル選択ダイアログを表示する。選択されたかどうかはfdに
    //返される。
    int fd=fc.showOpenDialog(this);
    try{
      if(fd==JFileChooser.APPROVE_OPTION){
        String swk=fc.getCurrentDirectory().getAbsolutePath();
        int slen=swk.length();
        if(swk.charAt(slen-1) == '\\'){
          delim="";
        }
        String s01=fc.getCurrentDirectory().getAbsolutePath()+delim+fc.getSelectedFile().getName();
        OutputFolderName.setText(s01);
      }
    } catch(Exception ex){System.out.println(ex);}
  }

  public void readSansho() {
    String delim="\\";
    JFileChooser fc=new JFileChooser(InputFolderName.getText());
    fc.setFileSelectionMode(JFileChooser.DIRECTORIES_ONLY);
    int fd=fc.showOpenDialog(this);
    try{
      if(fd==JFileChooser.APPROVE_OPTION){
        String swk=fc.getCurrentDirectory().getAbsolutePath();
        int slen=swk.length();
        if(swk.charAt(slen-1) == '\\'){
          delim="";
        }
        String s01=fc.getCurrentDirectory().getAbsolutePath()+
            delim+
            fc.getSelectedFile().getName();
        InputFolderName.setText(s01);
      }
    } catch(Exception ex){System.out.println(ex);}
    model.clear();
    searchFile(InputFolderName.getText());
  }

  public BufferedImage resizeImage (BufferedImage image) {
    double mag = 0.0;
    imageWidth = image.getWidth();
    imageHeight = image.getHeight();
    BufferedImage resizedImage = null;
    targetWidth=Integer.parseInt(jTextWidth.getText());
    mag = ((double)targetWidth / imageWidth);
    imageHeight = (int)(imageHeight * mag);
    imageWidth  = (int)(imageWidth * mag);

    resizedImage = new BufferedImage(imageWidth, imageHeight, image.getType());
    resizedImage.getGraphics().drawImage(
      image.getScaledInstance(
        imageWidth,
        imageHeight,
        Image.SCALE_AREA_AVERAGING
      ),
      0,
      0,
      imageWidth,
      imageHeight,
      null
    );
    return resizedImage;
  }

  public void writeImage(BufferedImage image, String filename, float quality) {
    Iterator writers = ImageIO.getImageWritersByFormatName("jpeg");
    if (writers.hasNext()) {
      ImageWriter writer = (ImageWriter)writers.next();
      try {
        ImageOutputStream stream
          = ImageIO.createImageOutputStream(new File(filename));
        writer.setOutput(stream);
        ImageWriteParam param = writer.getDefaultWriteParam();
        if (param.canWriteCompressed()) {
          param.setCompressionMode(ImageWriteParam.MODE_EXPLICIT);
          param.setCompressionQuality(quality);
        } else {
          System.out.println("Compression is not supported.");
        }
        writer.write(null, new IIOImage(image, null, null), param);
        stream.close();
        writer.dispose();
      } catch (IOException ex) {
        ex.printStackTrace();
      }
    }
  }


  //引数imageから、パックされた8ビットRGB色成分のBufferedImageを作成
  public BufferedImage convertToINTRGB (BufferedImage image) {
    BufferedImage convertedImage = new BufferedImage(
      image.getWidth(), image.getHeight(), BufferedImage.TYPE_INT_RGB);
    convertedImage.getGraphics().drawImage(image, 0, 0, null);
    return convertedImage;
  }

  //ぼかし処理
  void soft(int op) {
    imgprc.softenImage(op);
  }


//main()などを省略。.............

} //End of Class SizeConv

次に画像処理関連クラスImgPrc.javaです。

import java.awt.event.*;
import javax.swing.*;
import java.io.*;
import java.awt.image.*;
import java.awt.Graphics;
import java.util.*;
import java.awt.geom.*;
import java.awt.Toolkit;
import java.awt.*;
import java.awt.image.*;

public class ImgPrc  {
  private BorderLayout borderLayout1 = new BorderLayout();
  private ImageIcon icon;
  public Image image;
  private Dimension size;
    private int[] pixArray;
  int imageWidth; // = getImageWidth();
  int imageHeight; // = getImageHeight();

  public ImgPrc(){
  }

  public ImgPrc(Image newimage) {
    //newimageをthis.imageにセット。imageWidth,hをセット。pixArrayにimageデータをセット。
    this.image = newimage;
    this.imageWidth = getImageWidth();
    this.imageHeight = getImageHeight();
    this.pixArray = new int[imageWidth*imageHeight];
    PixelGrabber pg = new PixelGrabber(image,0,0,imageWidth,imageHeight,pixArray,0,imageWidth);
    try{
      //Set data into pixelArray[]
      pg.grabPixels();
    } catch(InterruptedException ex){
      System.out.println(ex);
    }
  }

  public void setNewImage(Image newimage){
    this.image = newimage;
    imageWidth = getImageWidth();
    imageHeight = getImageHeight();
    pixArray = new int[imageWidth*imageHeight];
  }

  public Image getCurrentImage(){
    return this.image;
  }

  public BufferedImage getBufferedImage () {
        BufferedImage convertedImage = new BufferedImage(
            getImageWidth(), getImageHeight(), BufferedImage.TYPE_INT_RGB);
        convertedImage.getGraphics().drawImage(this.image, 0, 0, null);
        return convertedImage;
    }

  //配列から新たなイメージをセット
  //@SuppressWarnings("unchecked")
  public void setPixelsFromArray(int[] pixels,int w,int h){
    MemoryImageSource m = new MemoryImageSource(w,h,pixels,0,w);
    image=Toolkit.getDefaultToolkit().createImage(m);
  }

  //Get image as an Array
  public int[] getPixArray(){
    int[] pixels;
    if (image == null)
      return null;
    int w = getImageWidth();
    int h = getImageHeight();
    pixels = new int[w*h];
    PixelGrabber pg = new PixelGrabber(image,0,0,w,h,pixels,0,w);
    try{
      pg.grabPixels();
    } catch(InterruptedException ex){
    System.out.println(ex);
    }
    return pixels;
  }

  public int getImageWidth(){
    if (this.image != null){
      return this.image.getWidth(null);
    } else {
      return -1;
    }
  }

  public int getImageHeight(){
    if (this.image != null){
      return this.image.getHeight(null);
    } else {
      return -1;
    }
  }

  void contrastChange(int thres, double dParam, int shift) {
    int p,red,green,blue;
    int[] adjRGB = new int[3], valRGB = new int [3];
    for (int i = 0; i < imageWidth * imageHeight; i++){
      //各色の切り出し
      p = pixArray[i];
      red = (0xff & (p >> 16));
      green = (0xff & (p >> 8));
      blue = (0xff & p);

      valRGB[0] = red;
      valRGB[1] = green;
      valRGB[2] = blue;
      for (int j = 0; j < 3;j++){
        adjRGB[j]= (int)( dParam * 25.0 * Math.cbrt((double)(valRGB[j]-thres)));
      }
      red += adjRGB[0]+shift;
      green += adjRGB[1]+shift;
      blue += adjRGB[2]+shift;
      if (red > 255) red = 255;
      if (red < 0 ) red = 0;
      if (green > 255) green = 255;
      if (green < 0 ) green = 0;
      if (blue > 255) blue = 255;
      if (blue < 0 ) blue = 0;

      pixArray[i] = (0xff000000 | red << 16 | green << 8 | blue);
    }
    try {
      setPixelsFromArray(pixArray,imageWidth,imageHeight); //新たなイメージをセット
    } catch (Exception ex) {
      ;
    }
  }

  //(x,y)座標のRGBいずれかの強度情報を返す
  //引数rgbは、red=2,green=1,blue=0
  private int getRGBpix(int[] pix,int x,int y,int w,int h,int rgb){
    if (x < 0)
      x = 0;
    if (x > w-1)
      x = w-1;
    if (y < 0)
      y = 0;
    if (y > h-1)
      y = h-1;
    int p = pix[y * w + x];
    return 0xff & (p >> (8 * rgb));
  }


public void scaleImage(int dw, int dh) {
  //this.image のサイズを(dw,dh)に変更する
      BufferedImage resizeImage=
        new BufferedImage(
          dw,
          dh,
          BufferedImage.TYPE_3BYTE_BGR
        );

      //imageはこのクラスのメンバ
        resizeImage.getGraphics().drawImage(
        image.getScaledInstance(
          dw,
          dh,
          Image.SCALE_AREA_AVERAGING
        ),
        0,
        0,
        dw,
        dh,
        null
      );
        resizeImage.getGraphics().drawImage(
          image.getScaledInstance(
            dw,
            dh,
            Image.SCALE_AREA_AVERAGING
          ),
          0,
          0,
          dw,
          dh,
          null
        );
      image=resizeImage;
}

  public void softenImage(int op) {
    int[] pixels = getPixArray(); //現在のイメージを配列で取得
    if (pixels == null) return;
    int w = getImageWidth();
    int h = getImageHeight();
    int i,j,k;

    int[] param = new int[9];
    int m=0;
    for (i = 0;i < 9;i++){
      param[i] = 2;
      m+=param[i];
    }
    m-=param[4];
    param[4] = op;    //中心の重み
    m += op; //分母

    int[] valRGB = new int[3];
    int[] pixels2 = new int[w * h];

    for (i = 0;i < h;i++){
      System.out.println(i);
      for (j = 0;j < w;j++){
        for (k = 0;k < 3;k++){
          valRGB[k] = (
              (getRGBpix(pixels,j-1,i-1,w, h, k) * param[0]) +
              (getRGBpix(pixels,j  ,i-1,w, h, k) * param[1]) +
              (getRGBpix(pixels,j+1,i-1,w, h, k) * param[2]) +
              (getRGBpix(pixels,j-1,i  ,w, h, k) * param[3]) +
              (getRGBpix(pixels,j  ,i  ,w, h, k) * param[4]) +
              (getRGBpix(pixels,j+1,i  ,w, h, k) * param[5]) +
              (getRGBpix(pixels,j-1,i+1,w, h, k) * param[6]) +
              (getRGBpix(pixels,j  ,i+1,w, h, k) * param[7]) +
              (getRGBpix(pixels,j+1,i+1,w, h, k) * param[8])) / m;
          if (valRGB[k] < 0) valRGB[k] = 0;
          if (valRGB[k] > 255) valRGB[k] = 255;
        }
      pixels2[i * w + j] = (0xff000000 | valRGB[2] << 16 | valRGB[1] << 8 | valRGB[0]);
      }
    }
    try {
      //pixels2[]をimageにセット
      setPixelsFromArray(pixels2,w,h);
    } catch (Exception ex) {
      ex.printStackTrace();
    }
  }

  public void brightImage( double gm) {
    int[] pixels = getPixArray(); //現在のイメージを配列で取得
    if (pixels == null)  return;
    int w = getImageWidth();
    int h = getImageHeight();
    int p,red,green,blue;
    double gamma = gm;  //2.2;//ガンマ値
    for (int i = 0; i < w*h; i++){
      //各色の切り出し
      p = pixels[i];
      red = (0xff & (p >> 16));
      green = (0xff & (p >> 8));
      blue = (0xff & p);
      //ガンマ補正
      red = (int)(255.0 * Math.pow(((double)red / 255.0),(1.0 / gamma)));
      green = (int)(255.0 * Math.pow(((double)green / 255.0),(1.0 / gamma)));
      blue = (int)(255.0 * Math.pow(((double)blue / 255.0),(1.0 / gamma)));
      if (red > 255) red = 255;
      if (red < 0 ) red = 0;
      if (green > 255) green = 255;
      if (green < 0 ) green = 0;
      if (blue > 255) blue = 255;
      if (blue < 0 ) blue = 0;
      pixels[i] = (0xff000000 | red << 16 | green << 8 | blue);
    }
    try {
      setPixelsFromArray(pixels,w,h); //新たなイメージをセット
    } catch (Exception ex) {

    }
  }

  public void sharpImage() {
    //先鋭化
    int[] pixels = getPixArray();
    int w,h;
    int i,j,k;
    pixels = getPixArray();
    if (pixels == null)
      return;
    w = getImageWidth();
    h = getImageHeight();

    int[] rgb = new int[3];
    int[] pixels2 = new int[w * h];
    for (i = 0;i < h;i++){
      for (j = 0;j < w;j++){
      for (k = 0;k < 3;k++){
        rgb[k] = getRGBpix(pixels, j, i, w, h, k) * 5 -
             (getRGBpix(pixels, j  ,i-1, w, h, k) +
            getRGBpix(pixels,j-1,i  , w, h, k) +
            getRGBpix(pixels,j+1,i  , w, h, k) +
            getRGBpix(pixels,j  ,i+1, w, h, k));
        if (rgb[k] < 0) rgb[k] = 0;
        if (rgb[k] > 255) rgb[k] = 255;
      }
      pixels2[i * w + j] = (0xff000000 | rgb[2] << 16 | rgb[1] << 8 | rgb[0]);
      }
    }
      setPixelsFromArray(pixels2,w,h);
  }


  private int getRGBpixInt(int x, int y, int w, int h, int colorval){
    //colorval: 0=blue, 1=green, 2=red
    int[] pixels = getPixArray(); //現在のイメージを配列で取得
  if (x < 0)
      x = 0;
    if (x > w-1)
      x = w-1;
    if (y < 0)
      y = 0;
    if (y > h-1)
      y = h-1;
    int p = pixels[y * w + x];
    return 0xff & (p >> (8 * colorval));
  }

  //左右90°回転
  public void turnImage(int direction){
  //direction: 1=右90度  2=左90度 回転
    if (this.image == null)
      return;
    int[] pix1 = this.getPixArray();
    int w1 = this.getImageWidth();
    int h1 = this.getImageHeight();
    int i,j,p1,p2;
    int w2 = h1;
    int h2 = w1;
    int[] pix2 = new int[w2 * h2];
    if (direction == 1){        //右90度回転
      for (i = 0; i < h1; i++){
        for (j = 0; j < w1; j++){
          p1 = i * w1 + j;
          p2 = (h1 - (i + 1)) + (j * h1);
          pix2[p2] = pix1[p1];
        }
      }
    } else if (direction == 2){ //左90度回転
      for (i = 0; i < h1; i++){
        for (j = 0; j < w1; j++){
          p1 = i * w1 + j;
          p2 = (h1 * w1 - (h1 - i)) - (j * h1);
          pix2[p2] = pix1[p1];
        }
      }
    } else {
      return;
    }
    this.setPixelsFromArray(pix2,w2,h2);
  }

}

以下の書籍の最初のものはC#ですが,TCP/IPソケット通信のサンプルが簡潔に記述されていて、参考になると思います。英語ですが、技術文ですから読みやすい。また、ソースコードだけ読んでも十分参考になると思います。
